TTF/LT Mate Flange Forming Machine Products Information

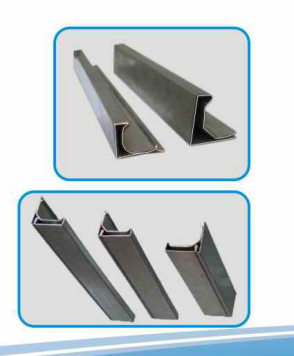

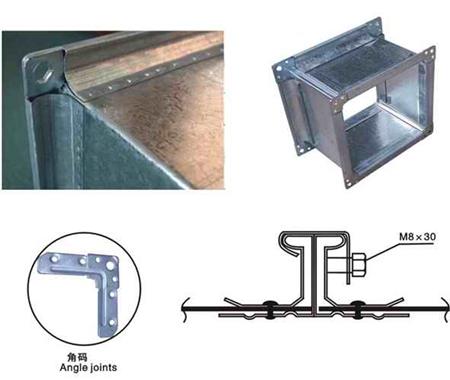

TTF/LT mate flange has well seal,strong and durable joint structure. Therefore it is specially suitable for producing a duct with large sectional area.
TTF/LT Mate Flange Forming Machine Configuration
Model No.
|
Max. Thickness
|
Shape
|
"a"Size
|
T-20
|
0.8mm/21ga
|
|
20±0.5
|
T-25
|
25±0.5
|
T-30
|
1.0mm/19ga
|
30±0.5
|
T-35
|
35±0.5
|
T-40
|
40±0.5
|
LT-20
|
0.8mm/21ga
|
|
20±0.5
|
LT-25
|
25±0.5
|
LT-30
|
1.0mm/19ga
|
30±0.5
|
LT-35
|
35±0.5
|
LT-40
|
40±0.5
|
TTF/LT Mate Flange Forming Machine Capabilities
l 14 forming stations produce an integral flange
l Manufacturing speed of approximately 26FPM(8m/min)
l Maximum capacity of 19gauge (1.0mm)

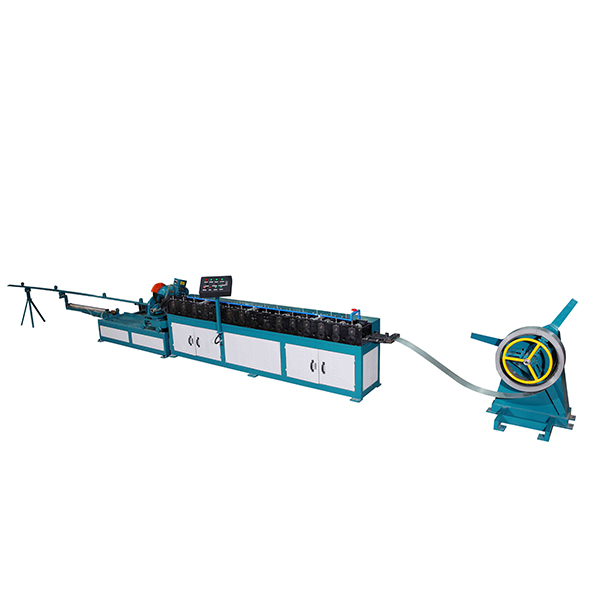

l Consists of a manual decoiler,rollforming machine and cutting unit

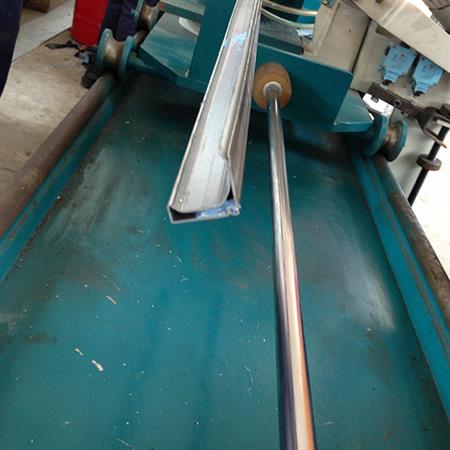

l Cut to length without burrs
l Sealant injection device optionally
