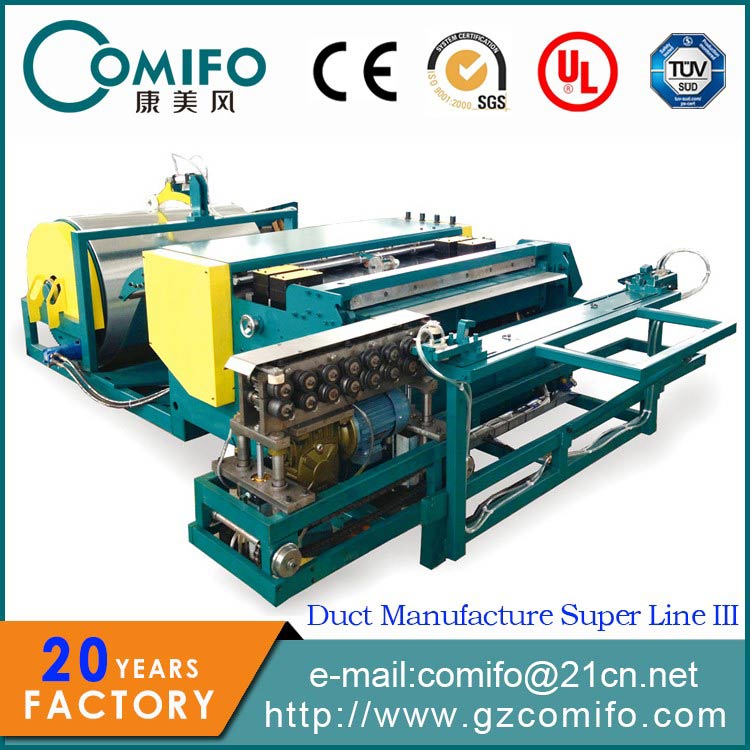

Basic Configuration Of Duct Roll Forming Machine

Duct roll forming machine + plasma cutting machine + multi-function bite machine + common flange machine + pneumatic folding machine, with the above equipment can achieve large-scale operation of the factory, production of a total of board flange duct, can also be produced Angle iron flange pipe greatly improves the production efficiency of the air duct and reduces the labor cost.
The duct roll forming machine is mainly used to form common plate flanges/angle iron flanges/"C" flanges. The daily processing capacity is nearly 2,000 square meters. Only the input dimensions are required. The production line will automatically complete the unwinding, leveling, pressure reinforcement, Angle, shear, joint bite, flange forming a series of processes.
The basic configuration of duct roll forming machine:
1. Electric discharge rack
2. One set of leveling and pressing device
3. Hydraulic punch square mouth cutting four sets of mold
4 hydraulic shear bending device
5. Patented product lifting and lowering machine
6. Set of duplex TDF common plate flange forming machine
7 set of double angle small edge forming machine
8. A set of bending machine
9. A set of control system and console
