Duct Auto Line Ⅵ Products Information

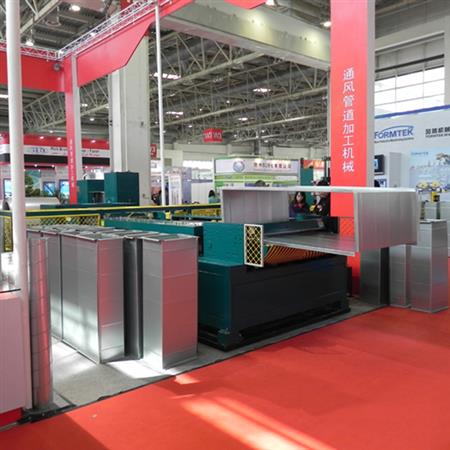

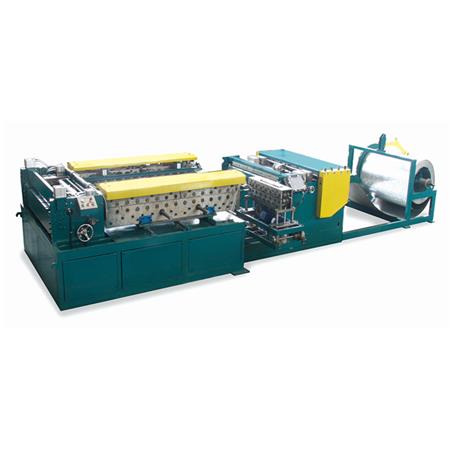

The world's new designed auto duct forming machine is now available since Comifo designed the Auto Line VI, which can be put in a 20GP container.

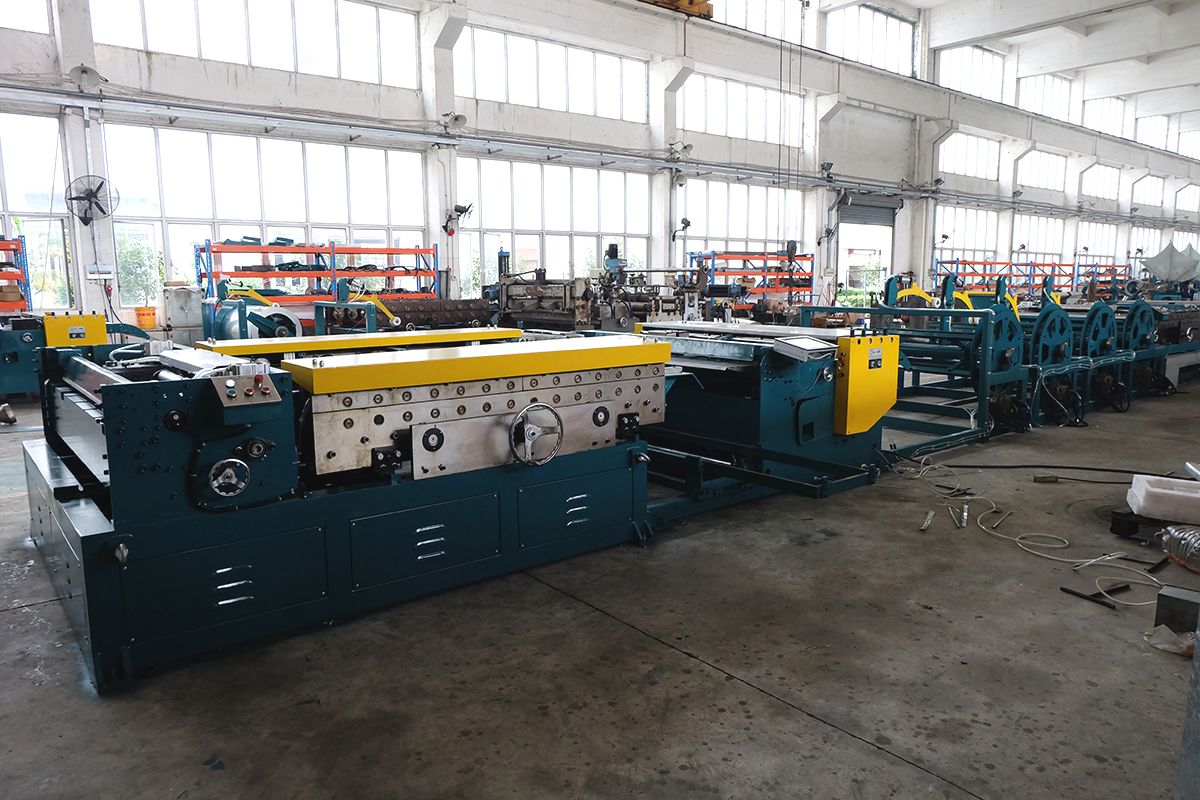

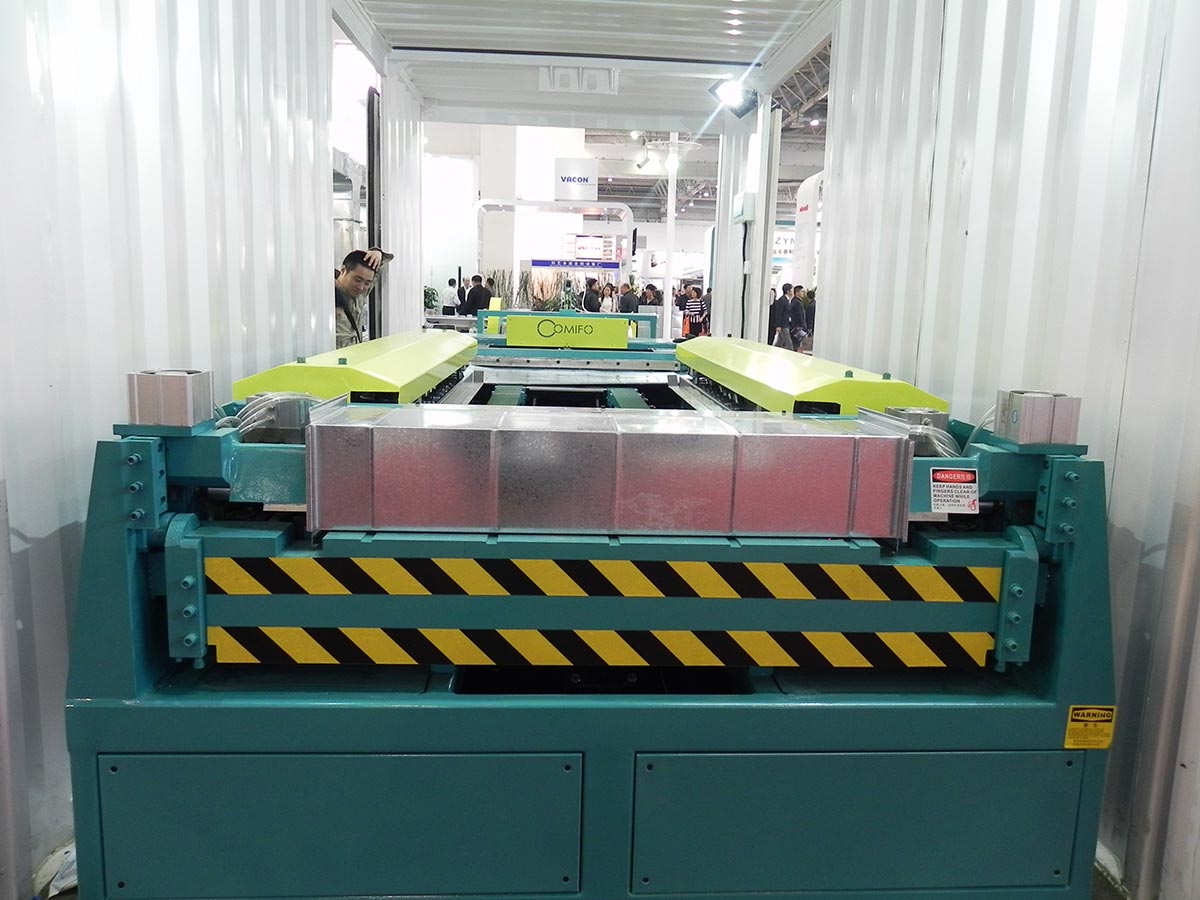

Container duct auto line VI with the feature of small size, firm structure and easy for installation, it can be used in the construction site to fulfill the ideal of movable operation and processing.
This auto line consists of decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automotion Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It can process different ducting of “L”, and “口". Used with the Comifo vertical duct seaming machine and corner inserter, increases production efficiency and saves labor cost.
The construction site used hvac duct forming machine auto line VI is Comifo's brave innovation and the world’s first container type auto line! It saves the manual work and transportation cost, which can move to different construction sites just by moving the container (No extra installing and testing are needed). Our duct forming machines have gained great popularity ever since its first face show in the market in 2012.
Model No.
|
Max Coil Width
|
Thickness Range
|
Speed
|
Shearing Tolerance
|
Diagonal Tolerance
|
CAL5-1.2x1300
|
4'(1250mm)
|
0.5-1.2mm
|
0-18m/min
|
±0.5mm
|
±0.5mm
|
CAL5-1.2x1600
|
5'(1550mm)
|
0.5-1.2mm
|
0-18m/min
|
±0.5mm
|
±0.5mm
|
Duct Auto Line Ⅵ Configuration
1. Electric duplex decoiler: (capacity: 5ton per each) 2set
2. Straightening
no of straightening roller: 6rollers for straightening
diameter of rollers: φ100
material of rollers: 45#thermal refined,chrome plated
3. Beading: 1set
no of beading roller: 2 rollers
diameter of rollers: φ100
material of rollers: 45#thermal refined,chrome plated
beading shapes

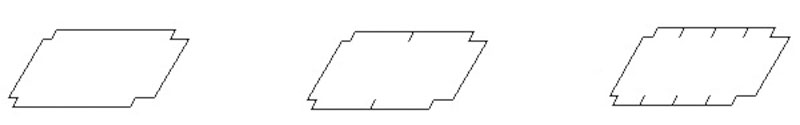

4. Notching and punching
5. Hydraulic shearing : shearing tolerance: ±0.5mm
material of the shearer: 6crwu2si
hardness of the shearer: 58-62hrc

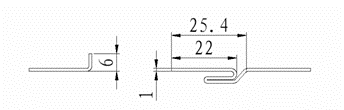

6. Automotion pittsburgh lock former(patened):
a pittsburgh lock former can form pittsburgh lock and right angle and shear at the same time,it is a perfect match for duct manufacture auto line, comifo design this machine and step a big progress in duct work industry, and comifo had successfully gained the patent right legally.
7.Coil conveyor
8.Duplex flange former
9.hydraulic folder
10.touch screen: input the dimension and make the command, easy-to-operation
Duct Auto Line Ⅵ Capabilities
1.Cut to length or cut blank for plasma cutting machine

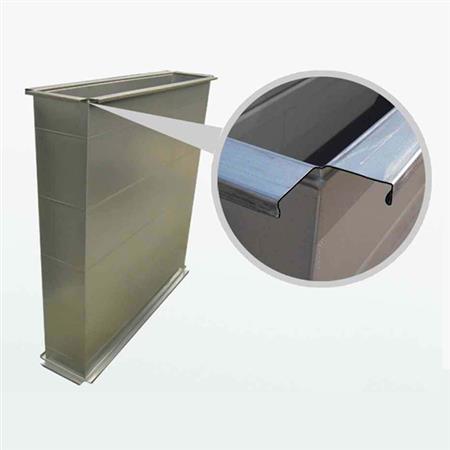

2.1 Produce a full wrap duct with TDF flange and Pittsburgh lock
2.1 Produce a full wrap duct with C cleat (drive cleat) or C/S duct
3. All products can be made as “L” shape or “口” (full wrap duct)
4. Finished product can be used with whisper-loc seam closer for seaming

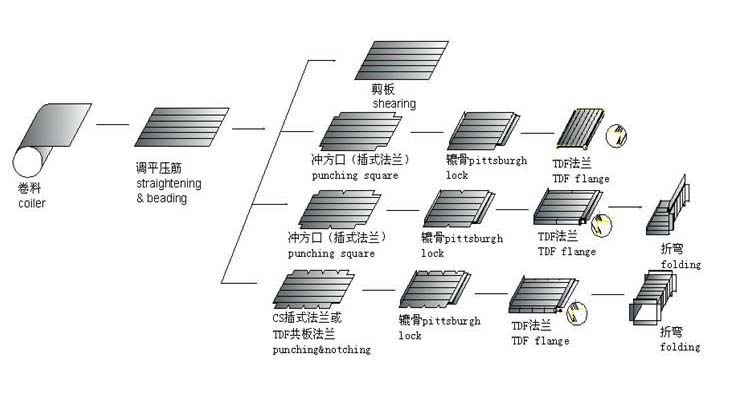

Work Flow: decoiler-staightening-beading-notching- punching –cutting-pittsburgh lock forming-coil conveyor-duplex TDF flange forming-duplex C cleat roll forming- hydraulic folding
