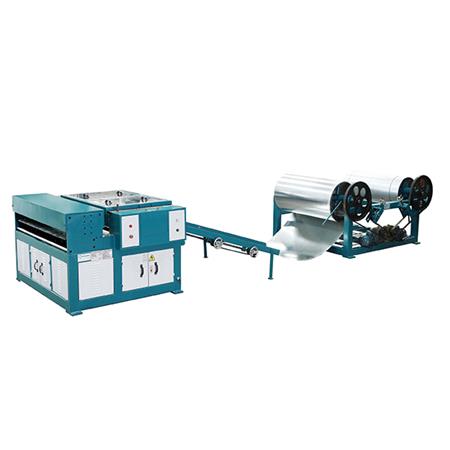

Duct Compact Line I

Model No.:

Max Coil Width:

Thickness Range:

Speed:

Shearing Tolerance:

Diagonal Tolerance:

Min.Order Quantity:

Supply Ability:

Port:

Payment Terms:

Duct Compact Line I Products Information

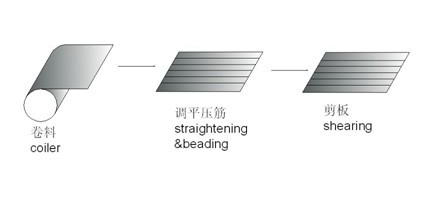

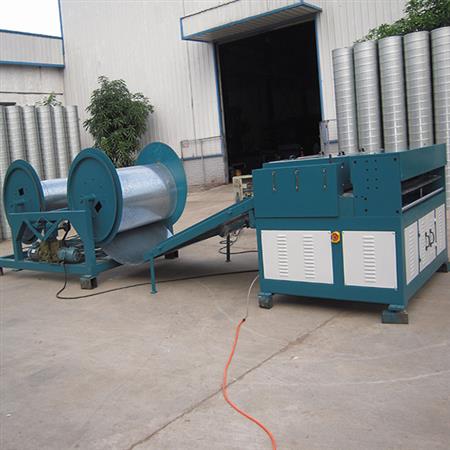

This automated duct line consists of decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automotion Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), coil conveyor, duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It can process different ducting of “L”, and “口 ”. Used with the Comifo vertical duct seaming machine and corner inserter, it increases production efficiency and saves labor cost.

Model No.	Max Coil Width	Thickness Range	Speed	Shearing Tolerance	Diagonal Tolerance
CAL1-1.2x1300	4'(1250mm)	0.5-1.2mm	0-18m/min	±0.5mm	±0.5mm
CAL1-1.2x1600	5'(1550mm)	0.5-1.2mm	0-18m/min	±0.5mm	±0.5mm
