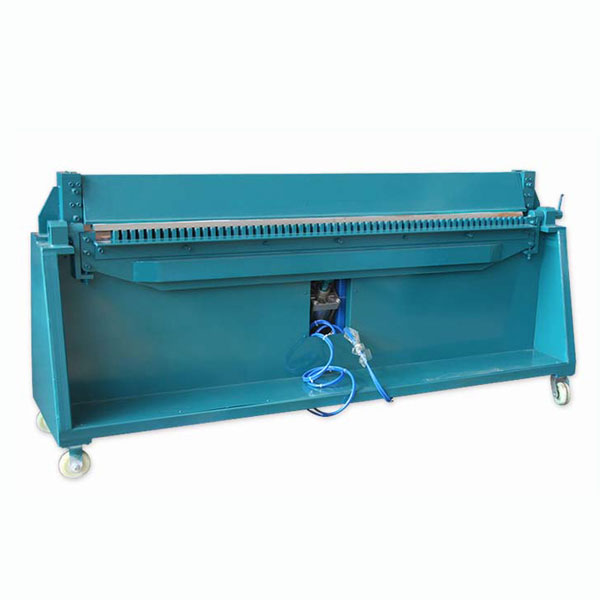

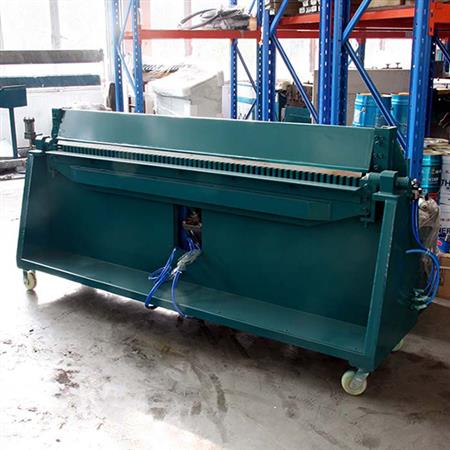

Pneumatic Folding Machine

Pneumatic Folding Machine Products Information

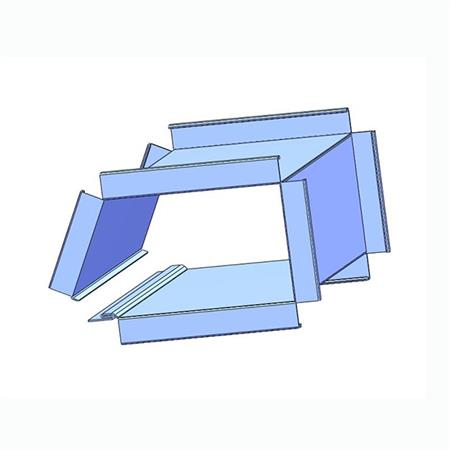

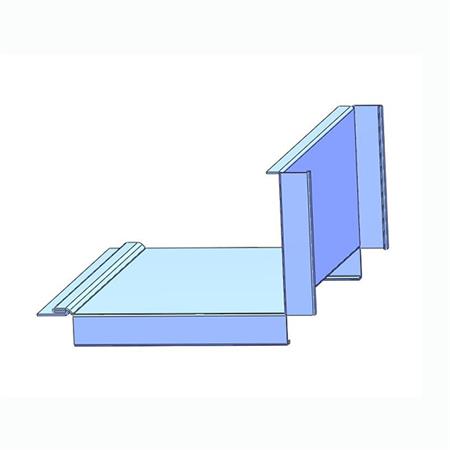

The TDF / GDF wrap brake equipped inside the duct folding machine is designed to allow a single operator to accurately place and fold flat blanks with TDF or GDF rollformed flanges into L-shape or full wrap duct sections.

Advantage

WITH 20 YEARS OF MACHINERY MANUFACTURE EXPERIENCE

DUCT MACHINE HAS BEEN SELLING TO MORE THAN 128 COUNTRIES AND AREAS

WITH 140,000㎡ FACTORY PRODUCTION AREA

WITH 24 PRODUCT PATENTS

Factory

Model No.	Max Coil Width	Minumum Fold Duct	Thickness Range
CPF-1.2*1600	1600mm	140*140mm	0.4-1.2mm(18-30Ga)
CPF-1.2*2000	2000mm	140*140mm	0.4-1.2mm(18-30Ga)
