Angle Steel Production Line

Angle Steel Production Line Products Information

● When programming, you only need to input the workpiece size, quasi-distance, and number of jobs, which is very easy.

● A number of measures have been taken to solve the feeding difficulties and quasi-distance errors caused by the bending of angle steel.

● Adopt PLC industrial computer control, servo motor feeding, whichhas high efficiency and stable working accuracy.

● The key hydraulic and electric components are all high-grade products.

● With fault self-diagnosis and data statistics functions.

● The equipment has strong rigidity, compact structure, optimized discharge, shear-free function, and high material utilization rate.

● Punching and cutting automatic, which is highly productive.

● Computer interface in Chinese and English which is easy to operate and can display workpiece graphics.

● It can produce rules and irregularities, and has strong universality

● With order save function

Angle Steel Production Line Configuration

1. Range of processing angle steel (mm): ∠3×3×3—∠5×5×5
2. Maximum punching diameter (mm): Ø16 (5 thick, Q235)
3. Number of punches on each side (pcs): 1 total 2
4. Feeding Servo Motor: Divisun Servo
5. Angle steel feeding speed: 45 meters per minute
6. Machine dimensions: 3500×1000×1200mm (length X width X height)
7. Machine weight: 950KG
8. Processing range: angle iron 30-50mm
9. Power supply voltage: 380V three-phase three-wire
10. Machine power: 5.5KW
11. Power frequency: 50HZ
12. Processing plate thickness: 3-5mm
13. Length error: ±0.5mm (2000mm)
14. Hydraulic system pressure: 12Mpa
15. Hydraulic oil: 46#
16. Standard configuration of mold: 1 set of mold base: universal touch, angle cutting mold
17. Two sets of punching needles: 1 set for each size

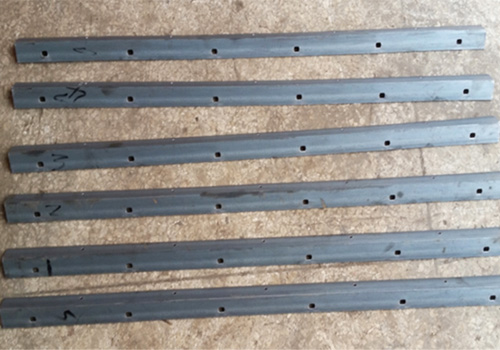

Angle Steel Production Line Capabilities
