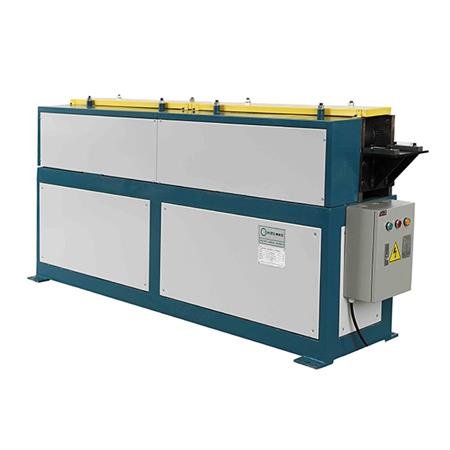

RF-08D Standing S Cleat

RF-08D Standing S Cleat Products Information

Standing S lock machine forms a shape that combines a conventional “S” cleat with a standing seam for greater strength and rigidity with thickness of 22ga.

This seam is adaptable in fabrication of large trunk or branch lines in industrial and commercial heating and ventilating units.

The designed integrity and quality construction of its 12-station configuration will provide years of trouble-free operation.

RF-08D Standing S Cleat Configuration

√ No adjustment for material 18-27ga (0.4-1.2mm)
√ Arc welded steel stand, heavy top plate
√  Roller material: GCr15
√ Roller shaft material: Thermal refined 45#
√ Transmission: V-belt
√ Control: Normal electric control
√ Motor : 1.5KW,
√ Speed: 26 FPM(9M/min)

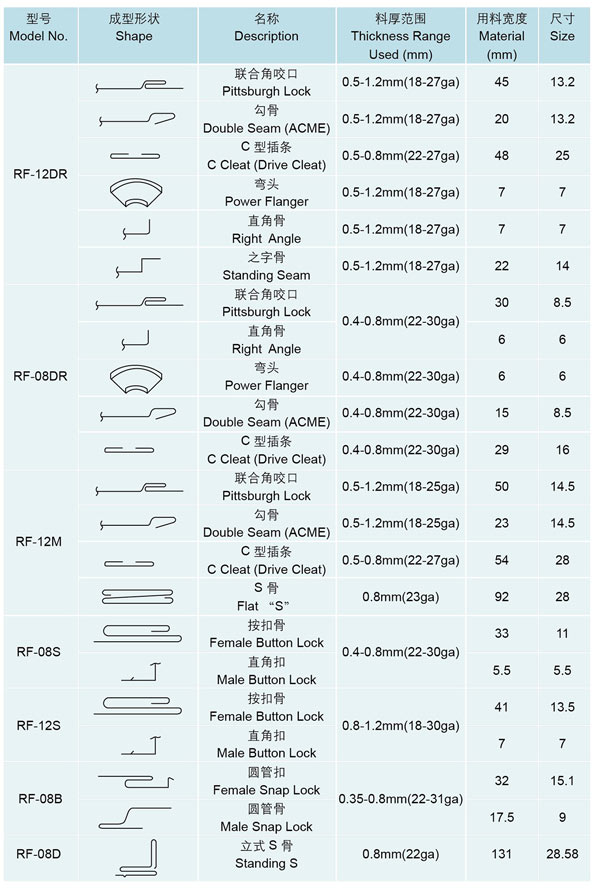

RF-08D Standing S Cleat Capabilities

RF-08D Standing S Cleat Video
