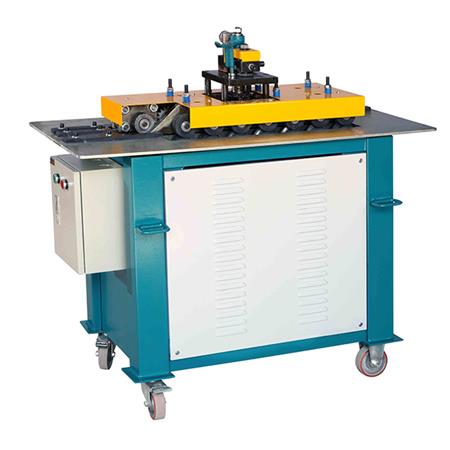

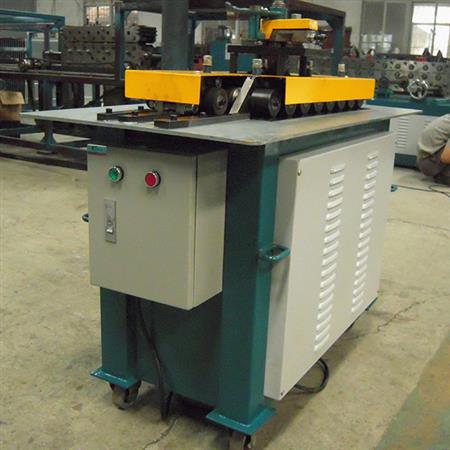

RF-12DR Lock Former

RF-12DR Lock Former Products Information

Multifunction pittsburgh lock former is the most popular machine in traditional duct manufacture. Customer can choose the rollers as their own requirements for different locks. Used with other machines, multifunction pittsburgh lock former shows its great adaptiveness. It is of light weight, and easy for delivery, which makes it to be taken right to the consctruction site.

Multifunction pittsburgh lock former has rigid and durable structure, which is no need of special maintenance. It adopts heavy duty underpan, arc welding frame, high grade motor, high precision bearing, COPRA designed rollers, thermal refined and grinded roller shafts. Its reliable transmission system is free of maintenance. The surface panels have been spray paint finished.

COMIFO Pittsburgh Lock Former is a versatile machine which allows you to perform the most common applications with one machine!

RF-12DR Lock Former Configuration

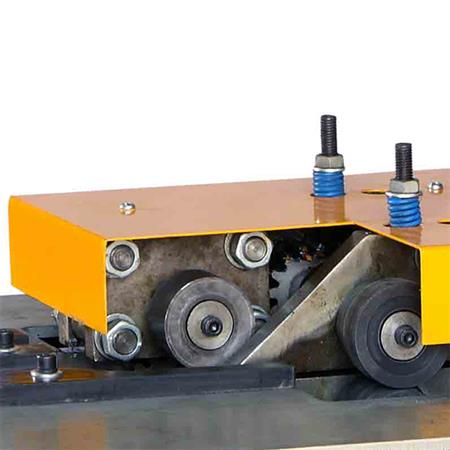

>Arc welded steel stand, heavy top plate

>Roller material: 40Cr

>Roller shaft material: Thermal refined 45#

>Transmission: V-belt

>Speed: 26 FPM(9m/min)

RF-12DR Lock Former Capabilities

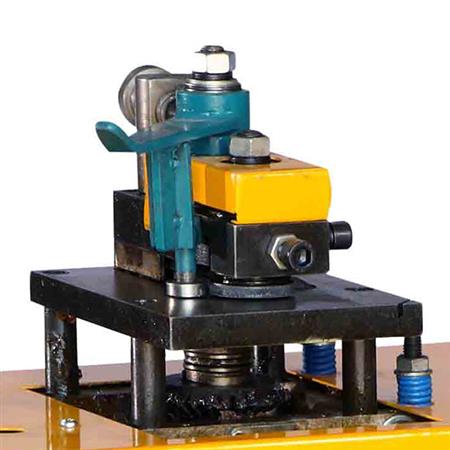

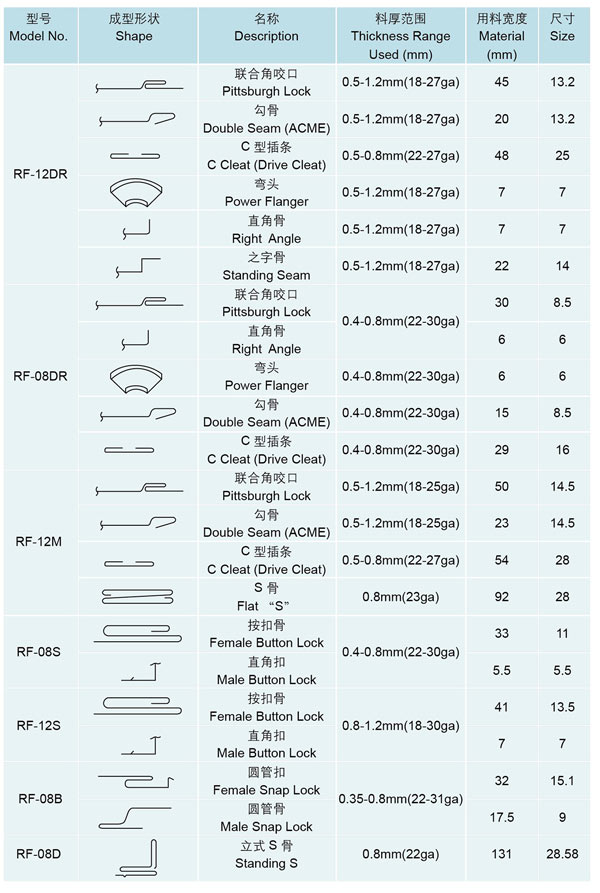

This 8/9-station lock former offers 6 forming positions, pittsburgh and auxiliary double seam(ACME),right angle flange, drive cleat (size of 25mm) with slitter, as well as top mounted power flanger.
