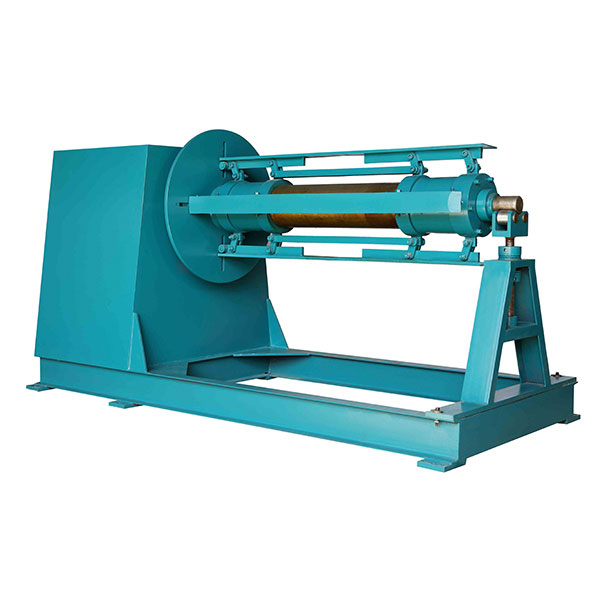

Hydraulic Decoiler
Hydraulic Decoiler

Hydraulic Decoiler

    Model No.: YKJ5*1300
    Max Coil Width: 1300mm
    Capacity: 5T
    Mandel Diameter: 450-600mm
    Coil Press Device: Optional
    Min.Order Quantity: 1 Set
    Supply Ability: 10 Sets per Month
    Port: GUANGZHOU PORT,SHENZHEN PORT
    Payment Terms: T/T,L/C

Hydraulic Decoiler Products Information

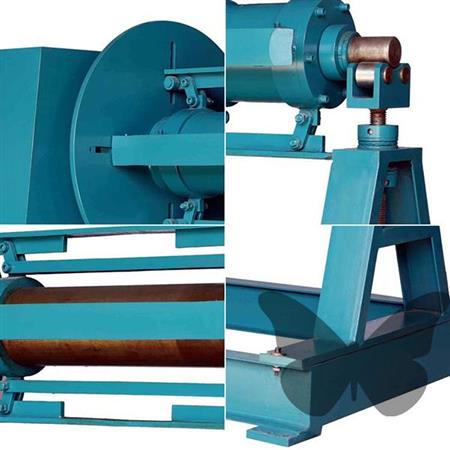

Comifo hydraulic decoiler adopts single mandel structure , and drived by hydraulic system and motor . The mandel is hydraulic expand with optional coil press safety device . The decoiler can work independently or combine with duct manufacture coil lines or cut to length line.

Model No. Max Coil Width Capacity Mandel Diameter Coil Press Device
YKJ5*1300 1300mm 5T 450-600mm  Optional
YKJ5*1600 1600mm 5T 450-600mm  Optional
YKJ8*1300 1300mm 8T 450-600mm  Optional
YKJ8*1600 1600mm 8T 450-600mm  Optional
YKJ10*1300 1300mm 10T 450-600mm  Optional
YKJ10*1600 1600mm 10T 450-600mm  Optional

Advantage

WITH 20 YEARS OF MACHINERY MANUFACTURE EXPERIENCE

DUCT MACHINE HAS BEEN SELLING TO MORE THAN 128 COUNTRIES AND AREAS

WITH 140,000㎡ FACTORY PRODUCTION AREA

WITH 140,000㎡ FACTORY PRODUCTION AREA

WITH 24 PRODUCT PATENTS

WITH 24 PRODUCT PATENTS
